Tunnel / Industrial equipment

Industrial equipment

  Name Description Dimenstions / Net weight Electricity Price

Industrial washer-extractor SI-275

Tank capacity 125 kg, one-sided forward tilt, free computer programming,
spring-mounted, steam connection

1800/2200/2160 mm
3860 kg (Net) 4130 kg (with a pack)

18,75 kW
380/50/3

€58 854

Industrial washer-extractor SP-100

Tank capacity 47 kg, spring-mounted, free computer programming. steam connection.

1204/1395/1805 mm 1591 kg. (Net weight) 1635  kg (with a pack)

5,5 kW
380/50/3

€18 622

Professional washer-extractor SP-60

Tank capacity 27 kg, spring-mounted. Free computer programming. Steam connection.

1003/1232/63,6 mm 660 kg(Net weight)  720 kg (with a pack)


3,7kW
380/50/3

€13 072

Industrial washer-extractor of isolation type for medical linen  SB-60

Tank capacity 27 kg, spring-mounted. Free computer programming. Steam connection.

1302/1279/1681 mm
1115 kg (Net weight)
1200 kg (with a pack)

      3,7 kW
380/50/3

€30 998

Industrial washer-extractor of isolation type for medical linen  SB-155

Tank capacity 70,5 kg, spring-mounted. Steam connection.

1596/2124/1463 mm
1615 kg (Net weight)
2541kg (with a pack)

11,25 kW
380/50/3

€50 740

Dryer DP-200

Tank capacity 91 kg, reverse, tank made of stainless steel, free computer programming. Steam connection.

2372/2010/1650 mm
1240 kg (Net weight)
1331kg (with a pack)

2,24 kW(motor)
+7,5kW(exhaust fan) 380/50/3

€24 956

Dryer DE-120

Tank capacity 54,5 kg, reverse, free computer programming, tank made of galvanized steel, Steam connection.

2084/1660/1200 mm
750 kg (Net weight)
790 kg (with a pack)

0,75kW(motor)
+2,24kW(exhaust fan)
380/50/5

€10 586

Dryer DE-75

Tank capacity 34 kg, reverse, tank made of galvanized steel, Steam connection.

1920/1270/973 mm
363 kg (Net weight)
390 kg (with a pack)

0,56kW(motor) +
0,75 kW(exhaust fan) 380/50/3

€4 983

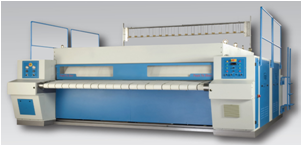

Industrial ironing machine IM1200/3000/2

Working area 3000 mm, two ironing rollers o1200, speed 5-50 m per minute     from 500 kg/hour; steam connection.

4450/4429/1888 mm
7280 kg (Net weight)
7630 kg (with a pack)

15 kW(driving mechanism)
+2,4 kW (exhaust fan)
380/50/3

€158 823

Industrial folding machine Amfold-P121

Automatic linen folder, synchronized with an ironing machine

3851/3100/1615 mm
500 kg

2kW(driving mechanism)
380/50/3

€58 468

Stacking machine  Amstack-D

Collect linen in stacks of a certain quantity and pile height, it produces them packed.

1014/2570/809 mm
190 kg

0,5 kW(driving mechanism)  380/50/3

€8 616

Boiler station

Transportable boiler station, gas-diesel driven. 2500-3000 kg steam/per hour, temperature 194 °С and pressure 1,4 MPa, To switch all set of equipment – heating supply, hot-water supply, heating of inlet ventilation as well in the winter time.

4800/4220/3600 mm
9300 kg (mounted) seismic resistance 6 on МSК-64 scale

Fuel estimated consumption,
210m3/h-gas,
190kg/h –diesel (possible – fuel –oil residue)

€148 000



Tunnel equipment, performance from 700 kg per hour

  Name  Description Electricity Price

Tunnel washing machine XPWC60/7

7 modules, double drum, water chambers for all compartments,
Steam heat. Production Std

380/50/3

€280 500

Conveyor belt XTLC60/4

Charging conveyor, 60 kg/section, 4 sections with electronic weighting.

380/50/3

€21 250

Press machine XPS60/1

Separate station for linen extraction after washing, medium pressure at extraction - 42 bar

380/50/3

€178 500

Transfer conveyor XTSC 5/4 (S)

Conveyor for pick-and-place operation of squeezed linen into the dryers (one in 4 dryers) Synchronized with press machine.

380/50/3

€38 250

Dryer X-Dry 60

High-efficient, energy-saving, pass-through type of drying machine, super effective drying of linen. Vertical door opening, unloading at the back side. (Gas, steam)

380/50/3

€44 625

Conveyor XTCC

Collecting conveyor, it’s placed behind the dryers, reversible.

380/50/3

€17 850

VS1 X-controller

System controller, It serves as a synchronization of all systems.

380/50/3

€34 000

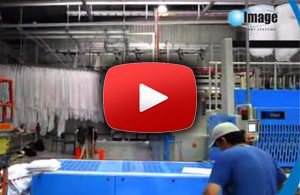

Watch how it's done
